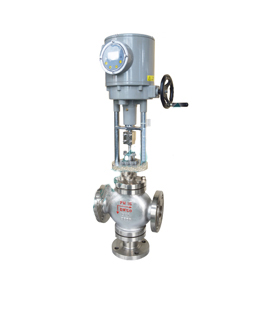

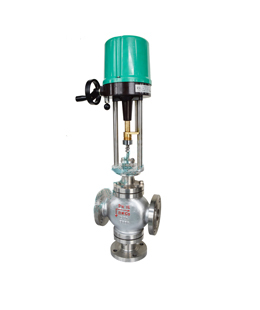

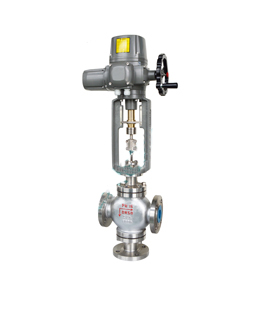

50S03 three-way regulating valve

Technical Parameters Structure and materials Specification parameter Quality Assurance

Our 830S three way control valve has three ways of confluence and three bypass, two ways of action, in some occasions can replace the two two way valve and a three-way valve to take over and widely used. We can adjust the parameters of pressure, flow, temperature, liquid level, valve structure using a cylindrical thin window, and the spool side oriented, good stability, easy to produce vibration, low noise, allowing the use of pressure, the characteristics of simple connection etc..

Three shunt regulator valve confluence overall A sensitive, simple connection, flow, small size, high precision adjustment. Way mixing regulator valve is mainly used for mixing two fluids into a third fluid; three shunt valve is mainly used for the fluid surge into the two fluids. Confluence of three shunt valve products can replace two single, two-seater regulating valve for regulating and controlling liquid, gas, steam and other media.

Design features

Sleeve guide type
Balanced inner part structure
Balance ring structure (room temperature)
Metal seal ring structure (high temperature)
Good sealing performance, allowing large pressure difference

Technical parameter

Caliber range: DN15 ~ DN400 (1/2 "~ 16")
Pressure range: PN1.6 ~ 6.3MPa (150 ~ 300LB)
Temperature range: -196 DEG C ~ +550 C (optional)
Structure form: Three way shunting, Three way confluence
Material: Carbon steel, Stainless steel, Duplex steel
Flow characteristics: Equal percentage, Linear, Fast open
Leakage rating: ASME B16.104 V
Bonnet type: Standard type, Heat dissipation type, Lw temperature type
Connection: Flange, welding, Thread (1 inside)
Actuator: Pneumatic actuator, Electric actuator

Control valve selection
The selection of control valves in industrial control valve selection process is particularly important, due to the various working parameters in different, choose to meet the technological requirements and the best cost control valves need experienced technical staff. Refined Europe (KOSA) company based on years of control valve selection calculation experience, independently developed "control valve selection software" can effectively improve the control valve selection efficiency and accuracy. KOSA software control valve selection, a code generation control valve comprehensive performance parameters, such as control valves, control valve specifications, calculation of control valve selection scheme comparison for the comprehensive technical documentation requirements of working condition.
case analysis
Control valve product coverage, some special cases often appear in complex condition, we KOSA company technical department can provide case control valve structure, materials and accessories such as a full range of your analysis report.
Provide higher implementation standards
As one of the pressure control valve pressure piping components shall be in strict accordance with relevant industry standards in design, production and testing, in strict accordance with relevant industry standards KOSA control valve products and design, production and testing according to a higher standard version for customers.
